    BA系列多回轉手動裝置

    BA series Multi-turn actuator

    產品簡介

    本產品采用弧齒錐齒輪和平面推力軸承,具有運轉平穩、扭矩大、噪音小、效率高的優點。適用于閘閥、截止閥,輸出與閥門閥桿以螺母(材質分銅螺母、球鐵螺母等)形式配合。螺母可以取出,用戶根據閥桿加工螺母的內螺紋

    主要件明細表

    This product adopts the spiral bevel gear and plane thrust bearing, has the advantages of stable operation, large torque, low noise, high efficiency. Applicable to the gate valve, globe valve, output with the valve stem nut ( material bronze nut, ductile iron nut) forms complexes. The nut can be removed, the user according to the threaded stem handing nut.


    技術參數

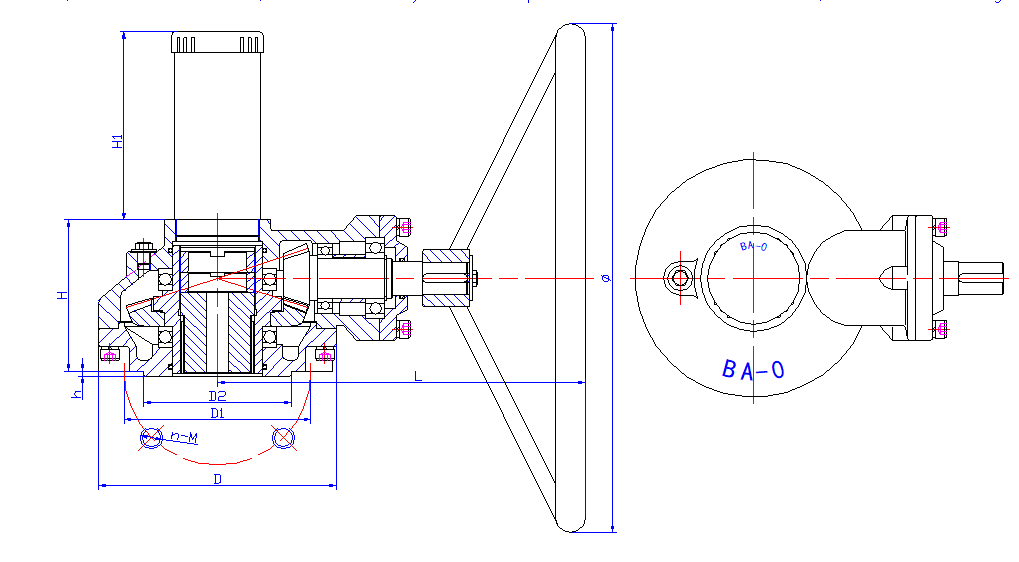

    外形尺寸表

    規格Model速比Ratio最大轉矩TorqueNm最大推力ThrustNDD1D2n-MHH1hφL閥桿最大直徑Max stem   dia
    BA-002.8:1480610001801401004-M16119196345028835
    BA-03:1750980002101651304-M20135257460035540
    BA-14:115001960002762542008-M16164261460040250
    BA-25.2:128403400003882982308-M20227341460049160


    連接尺寸表

    0
