本產品外形美現,蝸桿兩端為軸承結構。蝸桿與軸為一體設計,輸出扭矩大,效率明顯提高,具有可靠的自鎖性。本產品還可以增加鎖定裝置,野外安裝時防止他人隨意打開閥門。適用于90°回轉的蝶閥、球閥、旋塞閥等閥門的控制。
The product is characterized by small size,light weight,large output torque,rational structure and having reliably self-hold capacity. The product can also be increased locking device, to prevent others to open the valve.Suitable to control the 90o rotay buttefly valve,ball valve cock valve,etc.
型號/ Model | 扭矩/Torque(N.m) | 速比/Ratio | 輸入扭矩/Input(N.m) | 最大內孔 hole size max | 允許法蘭 moting flange min/max | 手輪 handwheel | 重量 WT |
M07 | 200 | 40:1 | 19 | 25 | F05、F07 | 140 | 3.1 |
M10 | 500 | 42:1 | 45 | 30 | F07、F10 | 260 | 6.2 |
M12 | 1000 | 42:1 | 90 | 40 | F10、F12、F14 | 300 | 11 |
M14 | 1800 | 60:1 | 110 | 60 | F12、F14、F16 | 400 | 14 |
M14A | 2500 | 70:1 | 130 | 60 | F14、F16 | 400 | 21 |
M15 | 3400 | 68:1 | 165 | 80 | F14、F16 | 500 | 32 |
M16 | 4400 | 88:1 | 169 | 85 | F16、F25 | 500 | 44 |

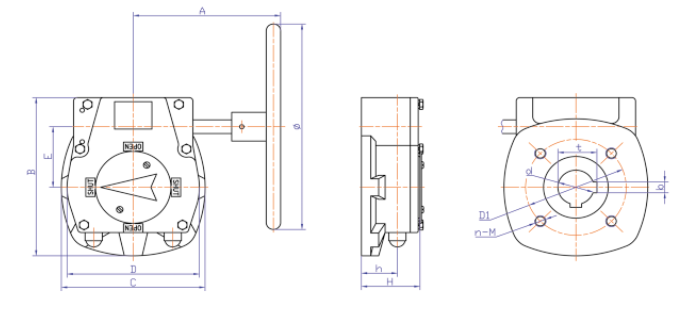

型號/ Model | d | b | t | D1 | n-M | A | B | C | D | E | ф | H | h |
M07 | 20 | 5 | 22.3 | 70 | 4-M8 | 151 | 111 | 92 | 84 | 39 | 140 | 55 | 31 |
M10 | 25 | 8 | 28.3 | 102 | 4-M10 | 214 | 145 | 118 | 107 | 53 | 260 | 61 | 35 |
M12 | 30 | 8 | 33.3 | 125 | 4-M12 | 210 | 182 | 165 | 138 | 66 | 300 | 72 | 42 |
M14 | 35 | 10 | 38.3 | 140 | 4-M16 | 277 | 231 | 200 | 184 | 89 | 400 | 81 | 50 |
M14A | 35 | 10 | 38.3 | 140 | 4-M16 | 287 | 252 | 216 | 210 | 101 | 400 | 81 | 50 |
M15 | 45 | 14 | 48.8 | 165 | 4-M20 | 357 | 296 | 252 | 248 | 123 | 500 | 91 | 50 |
M16 | 55 | 16 | 59.3 | 254 | 8-M16 | 382 | 354 | 315 | 313 | 153 | 500 | 93 | 50 |
本產品外形美現,蝸桿兩端為軸承結構。蝸桿與軸為一體設計,輸出扭矩大,效率明顯提高,具有可靠的自鎖性。本產品還可以增加鎖定裝置,野外安裝時防止他人隨意打開閥門。適用于90°回轉的蝶閥、球閥、旋塞閥等閥門的控制。
The product is characterized by small size,light weight,large output torque,rational structure and having reliably self-hold capacity. The product can also be increased locking device, to prevent others to open the valve.Suitable to control the 90o rotay buttefly valve,ball valve cock valve,etc.
型號/ Model | 扭矩/Torque(N.m) | 速比/Ratio | 輸入扭矩/Input(N.m) | 最大內孔 hole size max | 允許法蘭 moting flange min/max | 手輪 handwheel | 重量 WT |
M07 | 200 | 40:1 | 19 | 25 | F05、F07 | 140 | 3.1 |
M10 | 500 | 42:1 | 45 | 30 | F07、F10 | 260 | 6.2 |
M12 | 1000 | 42:1 | 90 | 40 | F10、F12、F14 | 300 | 11 |
M14 | 1800 | 60:1 | 110 | 60 | F12、F14、F16 | 400 | 14 |
M14A | 2500 | 70:1 | 130 | 60 | F14、F16 | 400 | 21 |
M15 | 3400 | 68:1 | 165 | 80 | F14、F16 | 500 | 32 |
M16 | 4400 | 88:1 | 169 | 85 | F16、F25 | 500 | 44 |
型號/ Model | d | b | t | D1 | n-M | A | B | C | D | E | ф | H | h |
M07 | 20 | 5 | 22.3 | 70 | 4-M8 | 151 | 111 | 92 | 84 | 39 | 140 | 55 | 31 |
M10 | 25 | 8 | 28.3 | 102 | 4-M10 | 214 | 145 | 118 | 107 | 53 | 260 | 61 | 35 |
M12 | 30 | 8 | 33.3 | 125 | 4-M12 | 210 | 182 | 165 | 138 | 66 | 300 | 72 | 42 |
M14 | 35 | 10 | 38.3 | 140 | 4-M16 | 277 | 231 | 200 | 184 | 89 | 400 | 81 | 50 |
M14A | 35 | 10 | 38.3 | 140 | 4-M16 | 287 | 252 | 216 | 210 | 101 | 400 | 81 | 50 |
M15 | 45 | 14 | 48.8 | 165 | 4-M20 | 357 | 296 | 252 | 248 | 123 | 500 | 91 | 50 |
M16 | 55 | 16 | 59.3 | 254 | 8-M16 | 382 | 354 | 315 | 313 | 153 | 500 | 93 | 50 |
本產品外形美現,蝸桿兩端為軸承結構。蝸桿與軸為一體設計,輸出扭矩大,效率明顯提高,具有可靠的自鎖性。本產品還可以增加鎖定裝置,野外安裝時防止他人隨意打開閥門。適用于90°回轉的蝶閥、球閥、旋塞閥等閥門的控制。
The product is characterized by small size,light weight,large output torque,rational structure and having reliably self-hold capacity. The product can also be increased locking device, to prevent others to open the valve.Suitable to control the 90o rotay buttefly valve,ball valve cock valve,etc.
型號/ Model | 扭矩/Torque(N.m) | 速比/Ratio | 輸入扭矩/Input(N.m) | 最大內孔 hole size max | 允許法蘭 moting flange min/max | 手輪 handwheel | 重量 WT |
M07 | 200 | 40:1 | 19 | 25 | F05、F07 | 140 | 3.1 |
M10 | 500 | 42:1 | 45 | 30 | F07、F10 | 260 | 6.2 |
M12 | 1000 | 42:1 | 90 | 40 | F10、F12、F14 | 300 | 11 |
M14 | 1800 | 60:1 | 110 | 60 | F12、F14、F16 | 400 | 14 |
M14A | 2500 | 70:1 | 130 | 60 | F14、F16 | 400 | 21 |
M15 | 3400 | 68:1 | 165 | 80 | F14、F16 | 500 | 32 |
M16 | 4400 | 88:1 | 169 | 85 | F16、F25 | 500 | 44 |
型號/ Model | d | b | t | D1 | n-M | A | B | C | D | E | ф | H | h |
M07 | 20 | 5 | 22.3 | 70 | 4-M8 | 151 | 111 | 92 | 84 | 39 | 140 | 55 | 31 |
M10 | 25 | 8 | 28.3 | 102 | 4-M10 | 214 | 145 | 118 | 107 | 53 | 260 | 61 | 35 |
M12 | 30 | 8 | 33.3 | 125 | 4-M12 | 210 | 182 | 165 | 138 | 66 | 300 | 72 | 42 |
M14 | 35 | 10 | 38.3 | 140 | 4-M16 | 277 | 231 | 200 | 184 | 89 | 400 | 81 | 50 |
M14A | 35 | 10 | 38.3 | 140 | 4-M16 | 287 | 252 | 216 | 210 | 101 | 400 | 81 | 50 |
M15 | 45 | 14 | 48.8 | 165 | 4-M20 | 357 | 296 | 252 | 248 | 123 | 500 | 91 | 50 |
M16 | 55 | 16 | 59.3 | 254 | 8-M16 | 382 | 354 | 315 | 313 | 153 | 500 | 93 | 50 |
